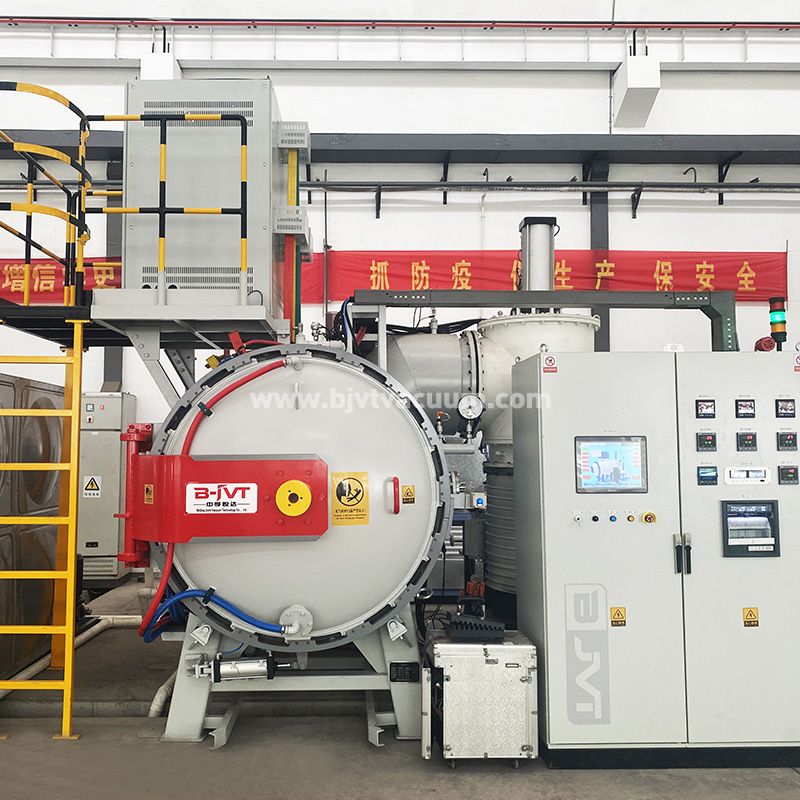

Product Description
Applicable material or products
Die & moudle steel
Tool steel
Stainless steel
Titanium alloy
Elastic alloy
High speed steel
Other materials
Applicable processing
Vacuum tempering
Vacuum annealing
Other processing
|
JVTF+L low vacuum series |
|||||||
|
No. |
Type |
Hot zone dimension |
Maxinium temperature |
Ultimate vacuum |
Pressure rising rate |
Heating chamber type |
Gas cooling pressure |
|
1 |
JVTF433L |
450*300*300 |
≤800℃ |
≤4×10-1Pa |
≤0.4Pa/h |
Combination type(refractory steel+ceramic fiber felts) |
＜2bar |
|
2 |
JVTF644L |
600*400*400 |
|||||
|
3 |
JVTF755L |
700*500*500 |
|||||
|
4 |
JVTF966L |
900*600*600 |
|||||
|
5 |
JVTF1288L |
1200*800*800 |
|||||
|
6 |
JVTF1299L |
1200*900*900 |
|||||
|
JVTF+H high vacuum series |
|||||||
|
7 |
JVTF433H |
450*300*300 |
≤800℃ |
≤6×10-4 Pa |
≤0.4Pa/h |
Refractory steel |
＜2bar |
|
8 |
JVTF644H |
600*400*400 |
|||||
|
9 |
JVTF755H |
700*500*500 |
|||||
|
10 |
JVTF966H |
900*600*600 |
|||||
|
11 |
JVTF1288H |
1200*800*800 |
|||||
|
12 |
JVTF1299H |
1200*900*900 |
|||||
Product features
1. Compact structure, highly-automatized operation,green and energy saving.
2. Treated without oxidation,degassing ,degreasing.
3. Horizental type or vertical type can be chosen according to the different product's charactor, for vertical type, it can be used to take heat treatment for bar, shaft or barrel parts.
4. By the accurate designing on power distribution and heating system, to gurantee a good temperature uniformity at low temperature of 200℃.
5. Safe running gurantee, visiual and light alarms and related interlock protection.
6. Online and remote malfunctions self-diagnosis.
